Latest Cisco 300-515 Exam questions and answers [Q26-Q41]

Latest Cisco 300-515 Exam questions and answers

BraindumpStudy 300-515 Exam Practice Test Questions (Updated 87 Questions)

Topics of Implementing Cisco Service Provider VPN Services (300-515 SPVI) Exam

These core topics isted below are general recommendations for the material that is likely to be used for the examination. However, on any particular delivery of the test, other similar topics could also appear. The guidelines below can update at any time without notice to better represent the contents of the exam and for clarity purposes.

It is recommended that, where possible, the applicant use these courses and/or other resources to provide background information on the exam objectives. The syllabus for the Implementing Cisco Service Provider VPN Services (300-515 SPVI) examination is listed below in detail of each section and their topics:

1. VPN Architecture (25%)

Objectives covered by this section:

Objective 1.1 – Compare VPN architecture:

• Inter-AS and Intra-AS
• Layer 2 and Layer 3 VPN

Objective 1.2 – Troubleshoot underlay:

• Core IGP
• LSP

Objective 1.3 – Describe Layer 2 service architecture:

• IOS XR Ethernet Flowpoints
• IOS XE Ethernet Virtual Circuits

Objective 1.4 – Describe the L3VPN control plane operation:

• PE-CE route advertisement
• Route target
• MP-BGP

Objective 1.5 – Describe the L3VPN data plane operation:

• VRF forwarding instance
• Underlay label

2. Layer 2 VPNs (30%)

Objectives covered by this section:

Objective 2.1 – Troubleshoot L2VPN Services:

• E-LAN
• E-Line
• E-Tree

Objective 2.2 – Describe EVPN concepts:

• Multihoming mechanisms
• Traffic forwarding operation
• Suppression mechanisms
• Data plane and control plane operation

Objective 2.3 – Implement Ethernet Operations, Administration, and Maintenance (E-OAM)

Objective 2.4 – Implementing EVPN:

• EVPN VPWS
• EVPN native
• EVPN IRB

3. Layer 3 VPNs (35%)

Objectives covered by this section:

Objective 3.1 – Describe routing requirements:

• PE-CE routing protocol
• MP-BGP

Objective 3.2 – Troubleshoot Intra-AS L3VPNs:

• PE-PE
• PE-RR
• PE-CE

Objective 3.3 – Implement multicast VPN:

• MLDP
• Intranet MVPN
• Extranet MVPN

Objective 3.4 – Implement extranet/shared services:

• Route policy
• Import and export route targets

Objective 3.5 – Describe Inter-AS L3VPNs:

• Option A
• Option AB
• Option B
• Option C

Objective 3.6 – Describe CSC concepts:

4. IPv6 VPNs (10%)

Objectives covered by this section:

Objective 4.1 – Describe routing requirements:

• MP-BGP
• PE-CE routing protocol

Objective 4.2 – Troubleshoot IPv6 VPN provider edge:

• PE-PE
• PE-CE

More Details about 300-515 Exam

In taking such a test, candidates hope to pass and gain the CCNP Service Provider certificate. Still, Cisco extends one more certification associated with the same test, which is called the Cisco Certified Specialist – Service Provider VPN Services Implementation. This is a qualification that indicates that you have explored and comprehended all it takes to provide the Cisco SP VPN services. With reference to the CCNP Service Provider, there is a core exam identified as 350-501 that must be passed first. After this step, you move to the concentration part with three exams, where you should pick one test, among which there’s 300-515. Others are 300-510 and 300-535 validations.

NEW QUESTION 26

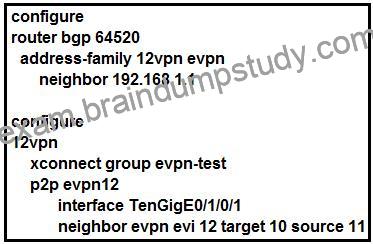

Refer to the exhibit.

Which effect of this configuration is true?

 It configures VPWS multihomed.

 It configures VPWS single homed.

 It configures an IPv4 peering with 192.168.1.1

 It configures MPLS traffic engineering.

Reference:
https://www.ciscolive.com/c/dam/r/ciscolive/emea/docs/2019/pdf/BRKSPG-2798.pdf

NEW QUESTION 27
An engineer is troubleshooting an EoMPLS circuit on a Cisco IOS XR router interface that removes a VLAN from the distribution layer. Which configuration should the engineer apply in order to accomplish the task?

 interface GigabitEthernet 0/10.l2transport
encapsulation dot1q 10
rewrite ingress tag pop 1 symmetric
l2vpn
xconnect group 103588
p2p 103588
interface GigabitEthernet 0/10.10
neighbor ipv4 10.10.10.2 pw-id 103588

 interface GigabitEthernet 0/10.10
encapsulation dot1q 10
rewrite ingress tag pop 1 symmetric
l2vpn
xconnect group 103588
p2p 103588
interface GigabitEthernet 0/10.10
neighbor ipv4 10.10.10.2 pw-id 103588

 interface GigabitEthernet 0/10.10 l2transport
encapsulation dot1q 10
l2vpn
xconnect group 103588
p2p 103588
interface GigabitEthernet 2/10.10
neighbor ipv4 10.10.10.2 pw-id 103588

 interface GigabitEthernet 0/10.10 l2transport
encapsulation dot1q 10
rewrite ingress tag translate 1-to-1 dot1ad 10
symmetric
l2vpn
xconnect group 103588
p2p 103588
interface GigabitEthernet 0/10.10
neighbor ipv4 10.10.10.2 pw-id 103588

Section: Layer 2 VPNs

NEW QUESTION 28
What is the primary function of a VRF on a router?

 It enables the router to support multiple separate routing tables, which allows the device to handle overlapping IP addresses.

 It enables a router to run BGP and a distance vector routing protocol at the same time, which allows it to serve as a VPN endpoint between remote sites.

 It enables a router to configure VLANs locally, which provides segregation between networks.

 It enables the router to provide faster switching through the network by using labels to identify the input and output interfaces for neighbor routers.

NEW QUESTION 29
What do EVPN single-active and all-active have in common?

 They are default gateway redundancy options.

 They are multihoming mechanisms used for CE devices.

 They are used to provide single connection from a CE device to a service provider.

 They are both roles that a designated router can take when MPLS is used with EVPN.

Reference: https://www.cisco.com/c/en/us/td/docs/routers/asr9000/software/asr9k-r6-2/lxvpn/configuration/ guide/b-l2vpn-cg-asr9000-62x/b-l2vpn-cg-asr9000-62x_chapter_01011.html

NEW QUESTION 30
Which BGP feature causes to replace the AS number of originating router with the AS number of the sending router?

 route reflectors

 route dampening

 confederations

 AS override

Reference: https://community.cisco.com/t5/networking-documents/understanding-bgp-as-override-feature/ta- p/3111967

NEW QUESTION 31
Refer to the exhibit.

Refer to the exhibit Router 1 is a P router in the ISP MPLS core A connected P router cannot generate an MPLS label for the router 1 loopback0 interface Which action resolves this issue?

 The loopback0 interface must be in OSPF area 0.

 The network statement under the routing process must have a wildcard mask of 0 0.0 255.

 The OSPF network type must be changed on loopback0 to point-to-point

 A static route to null 0 must be added for the loopback interface and then static routes must be redistributed into OSPF

NEW QUESTION 32

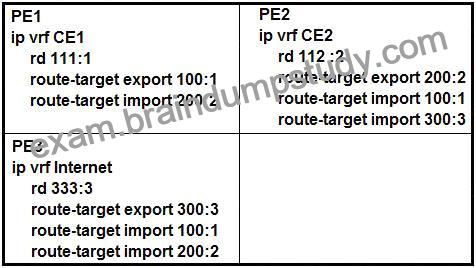

Refer to the exhibit.

PE1 and PE2 are exchanging VPNv4 routes for CE1 and CE2, and PE3 contains the default route to the internet. If the three devices are operating normally, which two conclusions describe this configuration?
(Choose two.)

 The CE1 and CE2 VRFs can exchange routes only between their respective VRFs on PE1 and PE2.

 All three routers must be running a distance-vector routing protocol.

 All three routers must be running MP-BGP.

 The CE1 and CE2 VRFs can access the default route provided by the Internet VRF.

 Only the CE2 VRF can access the default route provided by the Internet VRF.

NEW QUESTION 33

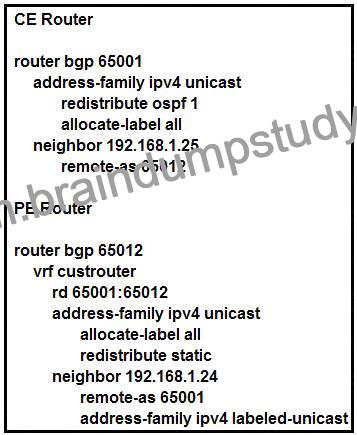

Refer to the exhibit.

The CE router has established a BGP peering with the PE router, and the CE will use the core infrastructure of the PE as a backbone carrier to support CSC. Which additional task can you perform to complete the configuration?

 Configure static routing on the CE router.

 Configure the address-family ipv4 labeled-unicast command under the neighbor configuration of the CE router for the PE.

 Change the rd value to 65001:65001 under the VRF section of the PE router.

 Configure OSPF on the PE router.

NEW QUESTION 34
Refer to the exhibit. The CE router has established a BGP peering with the PE router, and the CE will use the core infrastructure of the PE as a backbone carrier to support CSC.
Which additional task can you perform to complete the configuration?

 Configure static routing on the CE router.

 Configure the address-family ipv4 labeled-unicast command under the neighbor configuration of the CE router for the PE.

 Change the rd value to 65001:65001 under the VRF section of the PE router.

 Configure OSPF on the PE router.

NEW QUESTION 35
An engineer is investigating an EVPN traffic flow issue. Which type of traffic should the engineer allow in an EVPN Tree Service in order to fix this issue?

 known unicast from a leaf to another leaf

 unknown unicast from a leaf to another leaf

 multicast from a leaf to another leaf

 known unicast from a root to another root

NEW QUESTION 36
An ISP provides a major client MPLS VPN for managed services. The MPLS engineering team needs to use the advanced VPN feature of selective VRF import so that only specific prefixes are present in the required VPNs.
Which aspect of this feature must the team consider?

 A route must pass the import route map first and then the route target import filter.

 The routers that are imported in the VRF can be BGP and IGP routes, so other match conditions in the route map, besides communities, can be used.

 The import-map command is applied under the PE interface that connects to the CE router.

 A route is imported into the VRF only when at least one RT that is attached to the route matches one RT that is configured in the VRF and the route is permitted by the import route map.

Reference:
https://www.ccexpert.us/mpls/configuring-selective-vrf-import.html

NEW QUESTION 37
With Layer 3 MPLS VPN implementations on Cisco IOS XR PE routers, an interface is assigned to a VRF using the vrf command in which configuration mode?

 RP/0/RP0/CPU0:PE(config-bgp)#

 RP/0/RP0/CPU0:PE(config-if)#

 RP/0/RP0/CPU0:PE(config-bgp-af)#

 RP/0/RP0/CPU0:PE(config-vrf)#

Section: Layer 3 VPNs
Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/ios_xr_sw/iosxr_r3-7/mpls/configuration/guide/ gc37v3.html

NEW QUESTION 38
An engineer is troubleshooting an EoMPLS circuit on a Cisco IOS XR router interface that removes a VLAN

 interface GigabitEthernet 0/10.l2transport
encapsulation dot1q 10
rewrite ingress tag pop 1 symmetric
l2vpn
xconnect group 103588
p2p 103588
interface GigabitEthernet 0/10.10
neighbor ipv4 10.10.10.2 pw-id 103588

 interface GigabitEthernet 0/10.10
encapsulation dot1q 10
rewrite ingress tag pop 1 symmetric
l2vpn
xconnect group 103588
p2p 103588
interface GigabitEthernet 0/10.10
neighbor ipv4 10.10.10.2 pw-id 103588

 interface GigabitEthernet 0/10.10 l2transport
encapsulation dot1q 10
l2vpn
xconnect group 103588
p2p 103588
interface GigabitEthernet 2/10.10
neighbor ipv4 10.10.10.2 pw-id 103588

 interface GigabitEthernet 0/10.10 l2transport
encapsulation dot1q 10
rewrite ingress tag translate 1-to-1 dot1ad 10
symmetric
l2vpn
xconnect group 103588
p2p 103588
interface GigabitEthernet 0/10.10
neighbor ipv4 10.10.10.2 pw-id 103588

NEW QUESTION 39
While configuring the VRF Selection feature, you get an error message after typing the below statement:
Router(config)#no vrf selection source 172.16.0.0 255.255.0.0 vrf VRF1
Which action caused this message?

 the entry of an inconsistent IP address and mask for VRF Selection

 an attempt to configure a VRF instance on an interface that already has VRF Selection configured

 an attempt to remove a VRF Selection entry that does not exist

 an attempt to configure a VRF Selection table that does not exist

Reference: https://www.cisco.com/c/en/us/td/docs/ios/12_2/12_2sz/feature/guide/122szvrf.html

NEW QUESTION 40
An engineer is investigating an issue. Which command should an engineer use on a Cisco IOS XE device to display the contents of the LFIB?

 show mpls forwarding-table

 show mpls ldp neighbors

 show mpls ldp labels

 show mpls ldp bindings

NEW QUESTION 41
Which two are characteristics of using a non-MPLS peer-to-peer model over a traditional overlay model?
(Choose two.)

 The model is suited for nonredundant configurations.

 The configuration on a newly added site PE is updated automatically.

 Provider routers know the customer network topology.

 The customer specifies the exact site-to-site traffic profile.

 Routing information is exchanged between the customer router and one or a few PEs.

Section: VPN Architecture
Explanation/Reference: http://etutorials.org/Networking/MPLS+VPN+Architectures/Part+2+MPLS-based+Virtual+Private
+Networks/Chapter+7.+Virtual+Private+Network+VPN+Implementation+Options/Overlay+and+Peer-to- peer+VPN+Model/
