Cisco 300-625 Exam Topics:

Section	Weight	Objectives
MDS Troubleshooting	25%	– Troubleshoot Fibre Channel domains and duplicate domain ID – Troubleshoot zoning and zone merge failure – Troubleshoot boot and upgrade issues
Deployment	15%	– Describe installation and initial setup NX-OS DCNM POAP – Describe secure boot
Implementation	35%	– Implement Fibre Channel port channels – Implement Fibre Channel protocol services Name Service Cisco Fabric Services (CFS) – Implement FCoE FCoE Initialization Protocol (FIP) Priority flow control (PFC) Enhanced transmission selection (ETS) Data Center Bridging Exchange/Link Level Discover Protocol (LLDP) – Implement VSANs – Implement NPV and NPIV – Implement device aliases and zoning – Configure inter-VSAN routing – Implement VSAN extensions
Management and Monitoring	25%	– Configure DCNM DCNM-SAN client Licensing options DCNM Device Manager – Configure RBAC – Configure Fibre Channel fabric security – Describe slow-drain analysis – Implement SAN telemetry streaming

Q15. Which command identifies the application and the user that have a Cisco Fabric Services session open?

show cfs application

show zoneset active

show cfs lock

show device-alias database

Q16. What is the function of the 0xFFFFFC address in a Fibre Channel fabric?

management server

fabric controller

name server

time server

Section: Implementation
Explanation

Q17. Which configuration is needed to enable manual ESP mode for Fibre Channel TrustSec on Cisco MDS switches?

MDS(config)# interface fc 1/1
MDS(config-if)# fcsp esp manual

MDS(config)# fcsp esp manual

MDS(config)# interface fc 1/1
MDS(config-if)# fcsp mode gem
MDS(config-if-fcsp)# fcsp esp manual

MDS(config)# interface fc 1/1
MDS(config-if)# fcsp esp manual
MDS(config-if-esp)# mode gem

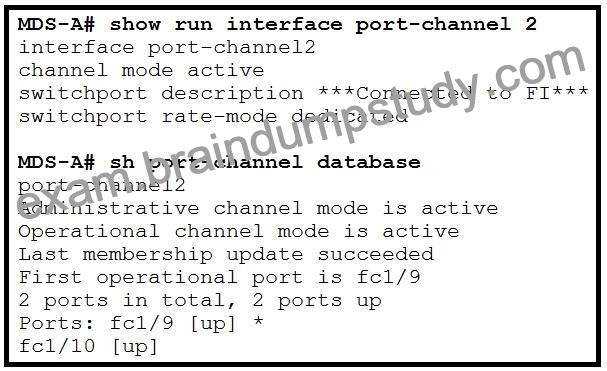

Q18. Refer to the exhibit.

Refer to the exhibit. A port channel has been configured between a Cisco MDS and a Cisco Fabric Interconnect switch. Which interface(s) in the port channel carry the control plane traffic?

per packet, balanced between interfaces fc1/9 and fc1/10

from interface fc1/9

from interface fc1/10

per flow, balanced between interfaces fc1/9 and fc1/10

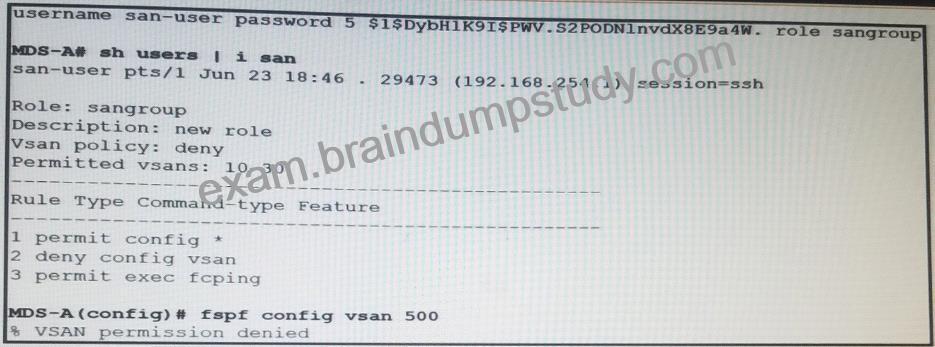

Q19. Refer to the exhibit.

Refer to the exhibit. The san-user must configure FSPF on the VSAN 500. but fails. An operator with network administrative rights must authorize the san-user to perform this work. Which configuration must the operator apply?

MDS-A(config)# role name sangroup
MDS-A(config-role># no rule 2

MDS-A(config)# role name sangroup
MDS-A(config-role)# rule 4 permit config feature fspf

MDS-A(config)# role name sangroup
MDS-A(config-role)# rule 2 permit config feature vsan

MDS-A(config)# role name sangroup
MDS-A(config-role)# vsan policy deny
MDS-A(config-role-vsan)# permit vsan 500

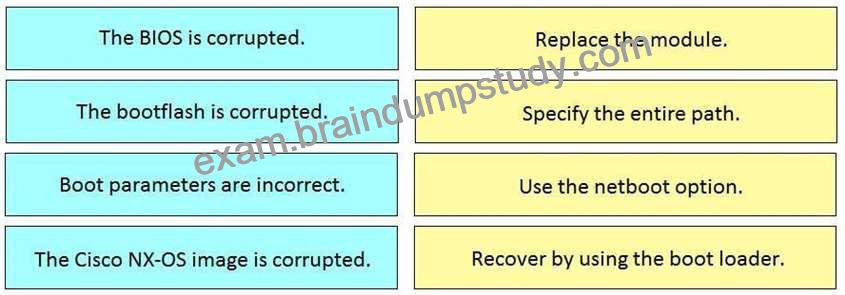

Q20. DRAG DROP
Drag and drop the boot issues from the left onto the correct solutions on the right.
Select and Place:

Section: MDS Troubleshooting
Explanation

Q21. A Cisco MDS Series Switch with the POAP feature boots and does not find the startup configuration. Which location is checked first when the switch enters POAP mode?

USB device that contains the software image files and the switch configuration file

DHCP server to bootstrap the interface IP address, gateway, DNS server, and TFTP IP addresses

TFTP server where the necessary configuration files are downloaded

HTTP server where the URL is used to download the software image

Section: Deployment

Q22. A storage administrator is configuring inter-VSAN routing on a fabric that contains duplicate domain IDs.
Which feature must be configured to ensure continued operation?

auto topology

transit VSANs

IVR NAT

virtual domains

Q23. A storage administrator is enabling DH-CHAP for the first time on a Fibre Channel fabric. Which condition must the administrator consider while configuring this feature?

NTP must be configured on all devices or the configuration fails.

The MD5 hash must be used if TACACS+ or RADIUS authentication for FCSP is enabled.

All switches on the fabric must be configured for the same password.

Enabling DH-CHAP protocol feature is unsupported on FCIP interfaces.

Q24. A storage administrator manually configures a storage switch to use a new static domain ID. After issuing an fcdomain restart vsan 1 command, the administrator sees that the switch is still using the existing domain ID.
What is the reason why the configuration is not working?

Static domain IDs apply only after a switch is rebooted.

The disruptive keyword was not used on the command.

Build fabric notifications were not sent to the other switches.

Domain manager fast restart is not enabled on the switch.

Section: MDS Troubleshooting

Q25. What is the effect of a non-graceful virtual machine shutdown on a virtualized server that is connected to a SAN with Fibre Channel interfaces?

NP Port reload connected to the upstream SAN switch

out-of-service Fibre Channel interfaces on the SAN switch

frames stuck in the storage system

frames stuck in the HBA buffer of the server

Q26. A storage network engineer is upgrading a Cisco MDS Director with dual supervisor modules. The install command is executed on the standby supervisor module but fails. Which action would have prevented this failure?

All FCoE interfaces configured on the MDS must be shut down before starting the upgrade.

The upgrade must be done on the active supervisor module only.

Cisco Fabric Services must be disabled before starting the upgrade.

Fabric Controller Service must be stopped before starting the upgrade.

Q27. A storage network engineer must configure a 48-port Cisco MDS switch to reject any login requests to VSAN 10 from unauthorized Fibre Channel devices and switches. All the devices that were already logged in to the switch from this VSAN must be allowed without any manual configuration Which configuration must be applied?

switch(config)# feature port-security
switch(config)# port-security activate vsan 10

switch(config)# feature port-security
switch(config)# port-security activate vsan 10 no-auto-learn

switch(config)# feature port-security
switch(config)# port-security database vsan 10
switch(config-port-security)# any-wwn interface fc1/1 – fc1/48

switch(config)# port-security activate vsan 10

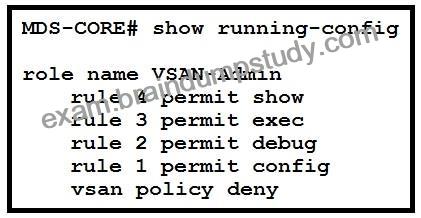

Q28. Refer to the exhibit.

A network engineer created a new user that uses the VSAN-Admin role on a Cisco MDS switch so a new colleague can manage the VSANs configured on the switch. Which action is required for the configuration to give permission to the new colleague?

permit vsan 1-1000 must be configured as rule 5.

permit vsan 1-1000 must be configured as rule 1.

permit vsan 1-1000 must be configured under the VSAN policy deny.

permit vsan 1-1000 must be configured under the VSAN policy allow.

Q29. A storage administrator wants to enable NPV in a Fibre Channel edge switch. Which configuration is supported in this mode?

Cisco Fabric Services distribution over Fibre Channel

E Port connectivity to the core switch

local switching of east-west traffic

Dynamic Port VSAN Membership

Q30. A storage network engineer must configure a 48-port Cisco MDS switch to reject any login requests to VSAN 10 from unauthorized Fibre Channel devices and switches. All the devices that were already logged in to the switch from this VSAN must be allowed without any manual configuration. Which configuration must be applied?

switch(config)# feature port-security
switch(config)# port-security activate vsan 10

switch(config)# feature port-security
switch(config)# port-security activate vsan 10 no auto-learn

switch(config)# feature port-security
switch(config)# port-security database vsan 10
switch(config-port-security)# any-wwn interface fc1/1 – fc1/48

switch(config)# port-security activate vsan 10

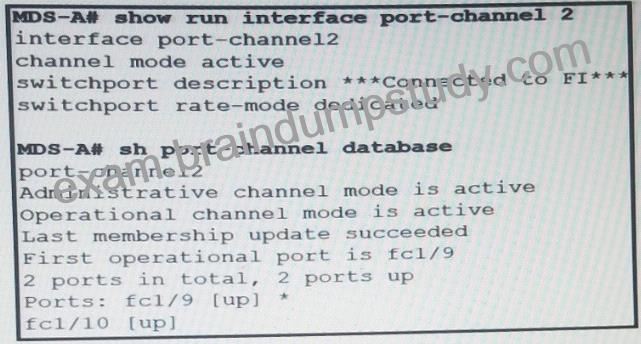

Q31. Refer to the exhibit. A port channel has been configured between a Cisco MDS and a Cisco Fabric Interconnect switch. Which interface(s) in the port channel carry the control plane traffic?

per packet, balanced between interfaces fc1/9 and fc1/10

from interface fc1/9

from interface fc1/10

per flow, balanced between interfaces fc1/9 and fc1/10

Q32. Which EtherType is used by the FCoE Initialization Protocol?

0*8913

0*8914

0*xfc0e

0*8906

Q33. Which Cisco NX-OS command displays the VSAN that is associated with each FCID?

show fcdomain

Show fc2 plogi

show vsan database

show flogi database

Q34. A storage administrator wants to enable NPV on a Fibre Channel edge switch. Which configuration is supported in this mode?

Cisco Fabric Services distribution over Fibre Channel

E Port connectivity to the core switch

local switching of east-west traffic

Dynamic Port VSAN Membership

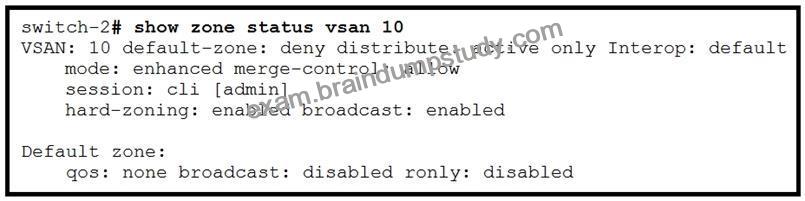

Q35. Refer to the exhibit. A user who is logged in as an operator cannot update the zoneset.
What is the cause of this issue?

The fabric is locked by admin on switch-2.

Hard zoning is enabled.

Merge control is disabled.

The switch has a conflicting domain ID.

The fabric is locked by admin on another switch.

Q36. A storage administrator is enabling DH-CHAP for the first time on a Fibre Channel fabric. Which condition must the administrator consider while configuring this feature?

NTP must be configured on all devices or the configuration fails.

The MD5 hash must be used if TACACS+ or RADIUS authentication for FCSP is enabled.

All switches on the fabric must be configured for the same password.

Enabling DH-CHAP protocol feature is unsupported on FCIP interfaces.

Section: Implementation

Q37. A storage network engineer must configure a 48-port Cisco MDS switch to reject any login requests to VSAN
10 from unauthorized Fibre Channel devices and switches. All the devices that were already logged in to the switch from this VSAN must be allowed without any manual configuration. Which configuration must be applied?

switch(config)# feature port-security
switch(config)# port-security activate vsan 10

switch(config)# feature port-security
switch(config)# port-security activate vsan 10 no auto-learn

switch(config)# feature port-security
switch(config)# port-security database vsan 10
switch(config-port-security)# any-wwn interface fc1/1 – fc1/48

switch(config)# port-security activate vsan 10

Q38. Which configuration is available only in Cisco DCNM-SAN Advanced mode?

IVR

VMpath configuration

zoning

template-based provisioning

Section: Deployment
Explanation/Reference:

Q39. Which two components are Required for successful MDS USB POAP? (Choose two)

NTFS formatted USB drive
