In Layer 2 switching, switches learn MAC addresses based on thesource MAC addressof incoming frames and forward frames based on thedestination MAC address.
Step-by-Step Breakdown:
* MAC Learning:When a switch receives a frame, it records thesource MAC addressand the port on which it arrived. This allows the switch to know where to send traffic destined for that MAC address.
* Forwarding Based on Destination:The switch then looks at thedestination MAC addressand forwards the frame out of the port associated with that MAC address. If the MAC is unknown, the switch floods the frame to all ports.
Juniper Reference:
* Layer 2 Switching: Juniper switches use source MAC addresses to build MAC tables and forward traffic based on the destination MAC address.

To verify that your router islearning routes from a remote BGP peerat a specific IP address (e.g.,
10.10.100.1), the correct command to use is show route receive-protocol bgp.
Step-by-Step Breakdown:
* BGP Route Learning:The show route receive-protocol bgp command displays the routes that have been received from a specified BGP peer. This helps in confirming that the remote peer is sending routes correctly and that your router is receiving them.
* Command Example:
show route receive-protocol bgp 10.10.100.1
* This will show all routes that have been received from the BGP peer with IP address 10.10.100.1.
Juniper Reference:
* BGP Route Verification: Use this command to troubleshoot and verify that routes from a specific BGP peer are being received.

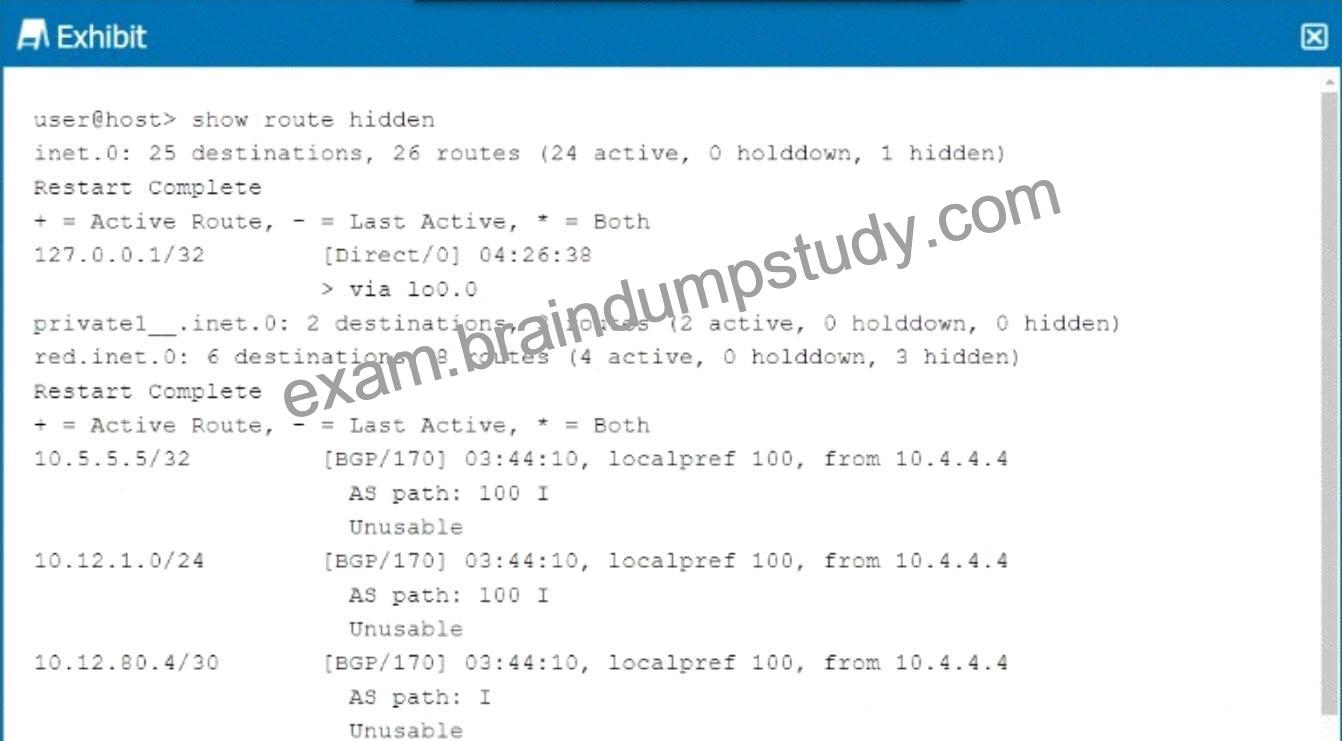

In the exhibit, the BGP routes are marked ashidden. This typically happens when the routes are not considered valid for use, but they remain in the routing table for reference. One common reason for BGP routes being hidden is that thenext hopfor these routes is unreachable.
Step-by-Step Breakdown:
* BGP Next Hop:In BGP, when a route is received from a neighbor, thenext hopis the IP address that must be reachable for the route to be used. If the next hop is unreachable (i.e., the router cannot find a path to the next-hop IP), the route is marked as hidden.
* Analyzing the Exhibit:The exhibit shows that the BGP next hop for all hidden routes is 10.4.4.4. If this IP is unreachable, the BGP routes from that neighbor will not be considered valid, even though they appear in the routing table.
* Verification:
* Use the command show route 10.4.4.4 to check if the next-hop IP is reachable.
* If the next-hop is not reachable, the BGP routes will be hidden. Resolving the next-hop reachability issue (e.g., fixing an IGP route or an interface) will allow the BGP routes to become active.
Juniper Reference:
* Junos Command: show route hidden displays routes that are not considered for forwarding.
* Troubleshooting: Check the next hop reachability for hidden BGP routes using show route <next-hop>.

Acollision domainis a network segment where data packets can “collide” with one another when being sent on the same network medium.
Step-by-Step Breakdown:
* Increased Collision Probability:If all devices are in asingle collision domain, the likelihood of packet collisions increases as more devices attempt to send packets simultaneously, leading to network inefficiencies.
* Increased Resource Consumption:More collisions result inincreased network resource consumption as devices need to retransmit packets, causing higher utilization of bandwidth and slowing down network performance.
Juniper Reference:
* Collision Domains: Proper network segmentation using switches reduces collision domains, thereby improving network performance and reducing packet collisions.

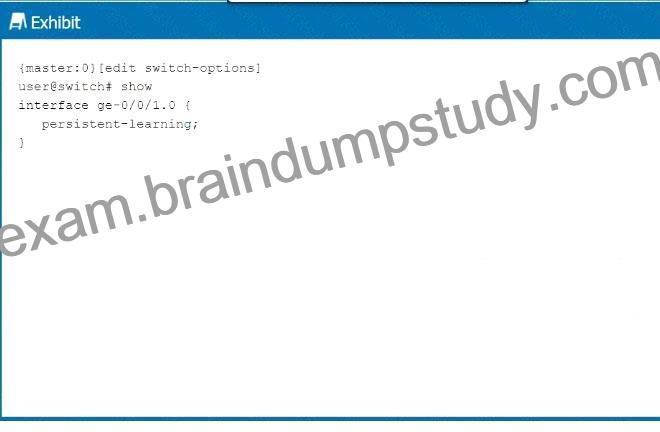

The configuration in the exhibit shows thepersistent-learningfeature enabled on interfacege-0/0/1.0.
Step-by-Step Breakdown:
* Persistent Learning:
* Persistent-learningensures that the MAC addresses learned on the interface are retained in the Ethernet-switching table, even after a device reboot. This prevents the need to re-learn MAC addresses after the device restarts, improving stability and reducing downtime.
* Use Case:
* This feature is particularly useful in environments where the re-learning of MAC addresses could cause temporary disruptions or delays in communication, such as in critical Layer 2 network segments.
* Command Example:
set switch-options interface ge-0/0/1.0 persistent-learning
Juniper Reference:
* Persistent MAC Learning: In Junos, enablingpersistent-learningensures that learned MAC addresses are not lost during reboots, contributing to smoother network operations in environments where stability is crucial.

In modern data centers, the shift toward leaf-spine architectures is driven by the need to handle increased east- west traffic, which is traffic between servers within the same data center. Unlike traditional hierarchical data center designs, where most traffic was “north-south” (between users and servers), modern applications often involve server-to-server communication (east-west) to enable services like distributed databases, microservices, and virtualized workloads.
Leaf-Spine Architecture:
* Leaf Layer: This layer consists of switches that connect directly to servers or end-host devices. These switches serve as the access layer.
* Spine Layer: The spine layer comprises high-performance switches that provide interconnectivity between leaf switches. Each leaf switch connects to every spine switch, creating a non-blocking fabric that optimizes traffic flow within the data center.
East-West Traffic Accommodation:
In traditional three-tier architectures (core, aggregation, access), traffic had to traverse multiple layers, leading to bottlenecks when servers communicated with each other. Leaf-spine architectures address this by creating multiple equal-cost paths between leaf switches and the spine. Since each leaf switch connects directly to every spine switch, the architecture facilitates quick, low-latency communication between servers, which is essential for east-west traffic flows.
Juniper’s Role:Juniper Networks provides a range of solutions that optimize for east-west traffic in a leaf- spine architecture, notably through:
* QFX Series Switches: Juniper’s QFX series switches are designed for the leaf and spine architecture, delivering high throughput, low latency, and scalability to accommodate the traffic demands of modern data centers.
* EVPN-VXLAN: Juniper uses EVPN-VXLAN to create a scalable Layer 2 and Layer 3 overlay network across the data center. This overlay helps enhance east-west traffic performance by enabling network segmentation and workload mobility across the entire fabric.
Key Features That Support East-West Traffic:
* Equal-Cost Multipath (ECMP): ECMP enables the use of multiple paths between leaf and spine switches, balancing the traffic and preventing any one path from becoming a bottleneck. This is crucial in handling the high volume of east-west traffic.
* Low Latency: Spine switches are typically high-performance devices that minimize the delay between leaf switches, which improves the efficiency of server-to-server communications.
* Scalability: As the demand for east-west traffic grows, adding more leaf and spine switches is straightforward, maintaining consistent performance without redesigning the entire network.
In summary, the leaf-spine architecture is primarily designed to handle the increase ineast-west trafficwithin data centers, and Juniper provides robust solutions to enable this architecture through its switch platforms and software solutions like EVPN-VXLAN.
